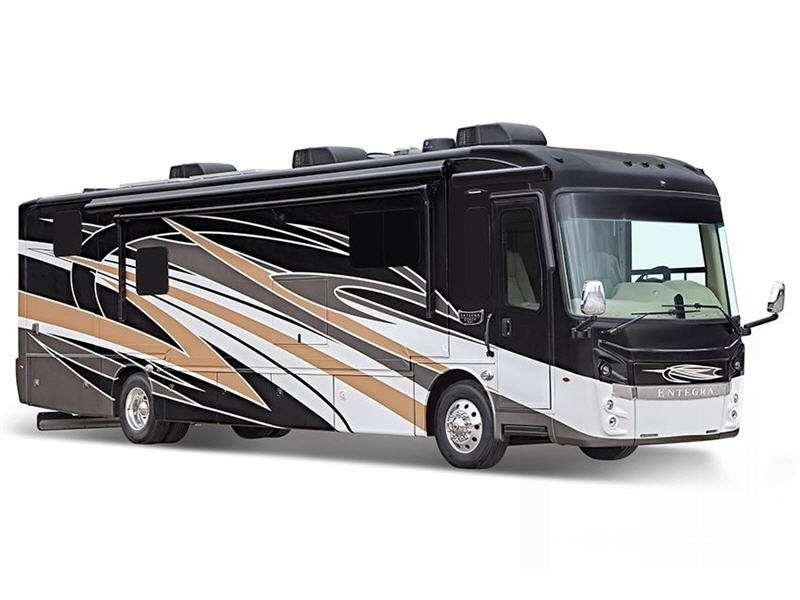

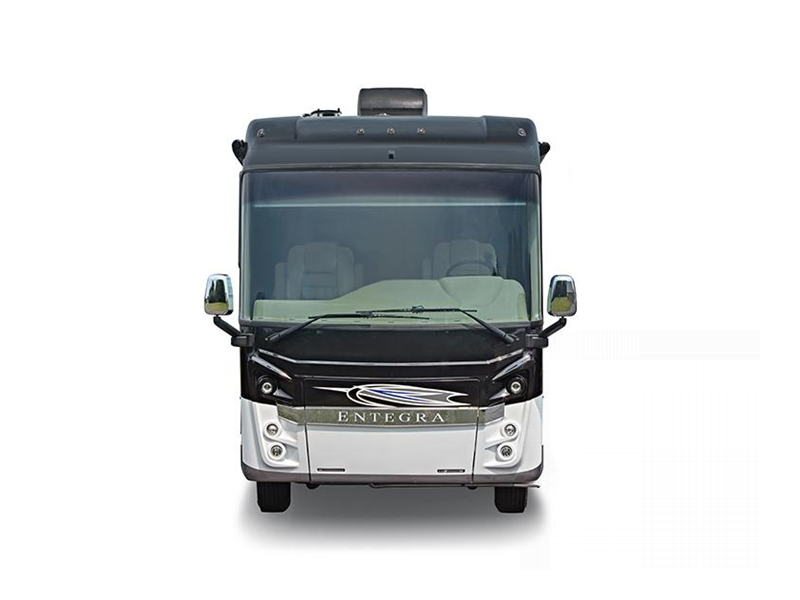

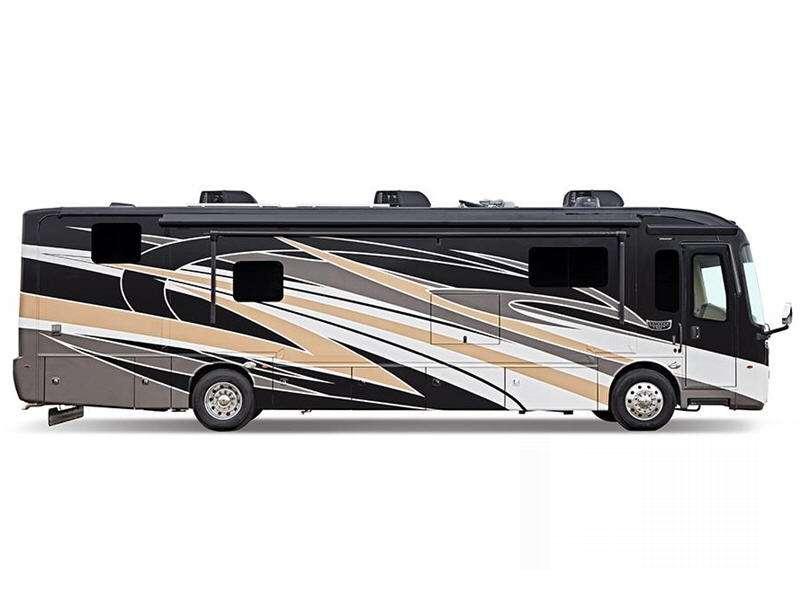

The Entegra Coach Reatta Class A diesel motorhomes may be smaller in size, but they still pack in all of the big features! There are beautiful residential touches throughout with all of the modern technology you could dream of having.



They are built on a Spartan K1 raised-rail chassis with a Cummins B6.7 turbocharged 360HP engine to power them. The independent front suspension has front air disc brakes and the Equalizer hydraulic automatic coach leveling ensures for an even set up. The cockpit not only has 6-way power adjustable driver and passenger seats for a comfortable ride, but also a Xite XSG4 infotainment system with a 9" touchscreen, iGO navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control, and even a house mode whole-coach audio distribution so you don't have to yell to those behind you.



It's time you hit the road in comfort and style with an Entegra Coach Reatta Class A diesel motorhome!

  • Reatta 39BH

    Reatta 39BH Floorplan Image

    Take a Virtual Tour

    Entegra Coach Reatta Class A diesel motorhome 39BH highlights: Bath and a Half ... more about Reatta 39BH

    Specifications

    Sleeps 7
    Slides 3
    Length 39 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Glacier, Summit, Valley
    Exterior Color Blue Velvet, Penny Graphite, Red Carmel, Pewter Red
    Hitch Weight 10000 lbs
    GVWR 36320 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 275/80R 22.5"
    Furnace BTU 50000 btu
    Generator Onan 8,000-watt diesel
    Fuel Type Diesel
    Engine Cummins B6.7
    Chassis Spartan K1 Raised-Rail
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 261 in

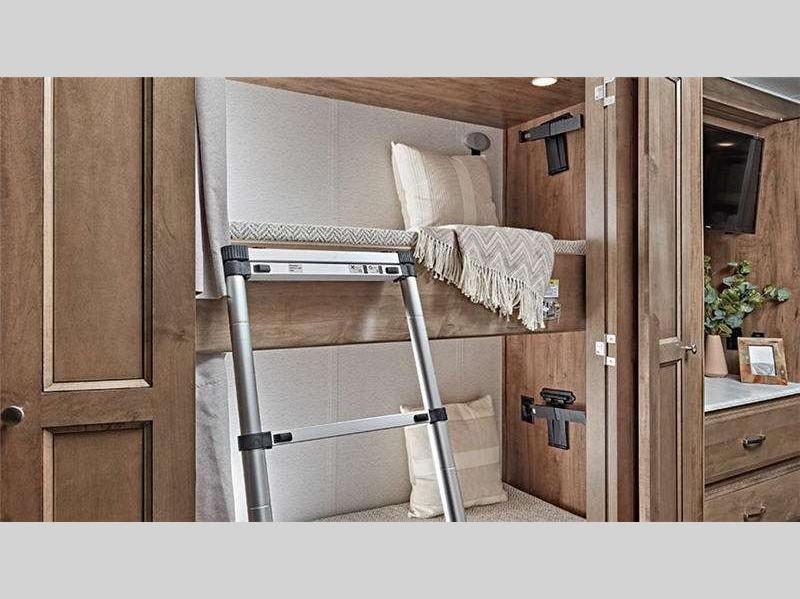

    Number Of Bunks 2
    Available Beds King Power Head Lift
    Torque 800 ft-lb
    Refrigerator Type Residential with Ice Maker and Water Dispenser
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 40"
    Number of Awnings 1
    Axle Weight Front 14320 lbs
    Axle Weight Rear 22000 lbs
    LP Tank Capacity 24.5 gals
    Water Heater Type Tankless
    AC BTU 45000 btu
    TV Info LR 50" Samsung 4K UHD Smart TV, BR 32" LED Smart TV, Ext. 43" Samsung 4K UHD Smart TV
    Awning Info Carefree Power w/ LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 46320 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Reatta 37K

    Reatta 37K Floorplan Image

    Take a Virtual Tour

    Entegra Coach Reatta Class A diesel motorhome 37K highlights: Rear Private ... more about Reatta 37K

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 4
    Length 37 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Glacier, Summit, Valley
    Exterior Color Blue Velvet, Penny Graphite, Red Carmel, Pewter Red
    Hitch Weight 10000 lbs
    GVWR 34320 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 275/80R 22.5"
    Furnace BTU 35000 btu
    Generator Onan 8,000-watt diesel
    Fuel Type Diesel
    Engine Cummins B6.7
    Chassis Spartan K1 Raised Rail
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 236 in
    Available Beds King Power Head Lift
    Torque 800 ft-lb
    Refrigerator Type Residential with Ice Maker and Water Dispenser
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 36" x 36"
    Number of Awnings 1
    Axle Weight Front 14320 lbs
    Axle Weight Rear 20000 lbs
    LP Tank Capacity 24.5 gals
    Water Heater Type Tankless
    AC BTU 30000 btu
    TV Info LR 50" Samsung 4K UHD Smart TV, BR 32" LED Smart TV, Ext. 43" Samsung 4K UHD Smart TV
    Awning Info Carefree Power w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 44320 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Reatta 39T2

    Reatta 39T2 Floorplan Image

    Take a Virtual Tour

    Entegra Coach Reatta Class A diesel motorhome 39T2 highlights: Bath and a Half ... more about Reatta 39T2

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 39 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Glacier, Summit, Valley
    Exterior Color Blue Velvet, Penny Graphite, Red Carmel, Pewter Red
    Hitch Weight 10000 lbs
    GVWR 36320 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 275/80R 22.5"
    Furnace BTU 50000 btu
    Generator Onan 8,000-watt diesel
    Fuel Type Diesel
    Engine Cummins B6.7
    Chassis Spartan K1
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 261 in
    Available Beds King Power Head Lift
    Torque 800 ft-lb
    Refrigerator Type Residential with Ice Maker and Water Dispenser
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 40"
    Number of Awnings 1
    Axle Weight Front 14320 lbs
    Axle Weight Rear 22000 lbs
    LP Tank Capacity 24.5 gals
    Water Heater Type Tankless
    AC BTU 45000 btu
    TV Info LR 50" Samsung 4K UHD Smart TV, BR 32" LED Smart TV, Ext. 43" Samsung 4K UHD Smart TV
    Awning Info Carefree Power w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 46320 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Reatta Features:

Standard Features (2024)



Chassis

  • Spartan® K1 raised-rail chassis
  • Cummins® B6.7 turbocharged 360-HP engine with 800-lb. ft. torque at 1,800 RPM
  • Allison® 3,000 MH 6-speed transmission
  • Rear-mounted radiator
  • 170-amp alternator
  • 750-watt engine block heater
  • Variable geometry turbo (VGT) engine brake
  • Front axle- 12,600 lb. (37K) 14,320 lb. (39BH/39T2)
  • Independent front air suspension (IFS)
  • Rear axle - 20,000 lb. (37K) 22,000 lb (39BH/39T2)
  • 4.88 rear axle ratio
  • Michelin® 275/80R 22.5” tires
  • Bilstein® 46mm shocks
  • Wireless tire pressure monitoring system (TPMS) with temperature monitoring
  • Equalizer™ hydraulic automatic coach leveling
  • Remote air connection
  • (2) 12V chassis batteries
  • 100-gal. fuel tank
  • 10-gal. DEF tank
  • Spartan® Safehaul tow vehicle air brake system
  • 10,000-lb. hitch with 7-pin plug

Construction

  • Roof: One-piece fiberglass with 3/8 in. plywood decking, 4 in. arched
  • aluminum trusses, insulation and reflective Flexfoil® (R-24)
  • Sidewalls: Vacuum-bonded, high-gloss gelcoat with R-8
  • bead-foam insulation
  • Floors: Vacuum-bonded layers of Darco underbelly, a welded
  • aluminum frame, R-9 bead-foam insulation, 3/8 in. Structurwood®
  • and 1/4 in. plywood
  • X-Bridge™ bracing welded into chassis frame
  • Heated basement storage
  • Insulated front and rear caps (R-24)
  • Electric-powered slideout rooms

Heat, AC, Water & Power

  • Onan® 8,000W diesel generator, with automatic start, on slide-out tray
  • 2,000W pure sine wave inverter with 100 amp battery charger
  • (2) L16 AGM batteries (6V/390 amp hrs. ea.)
  • 50 amp power cord
  • Automatic transfer switch with surge protection

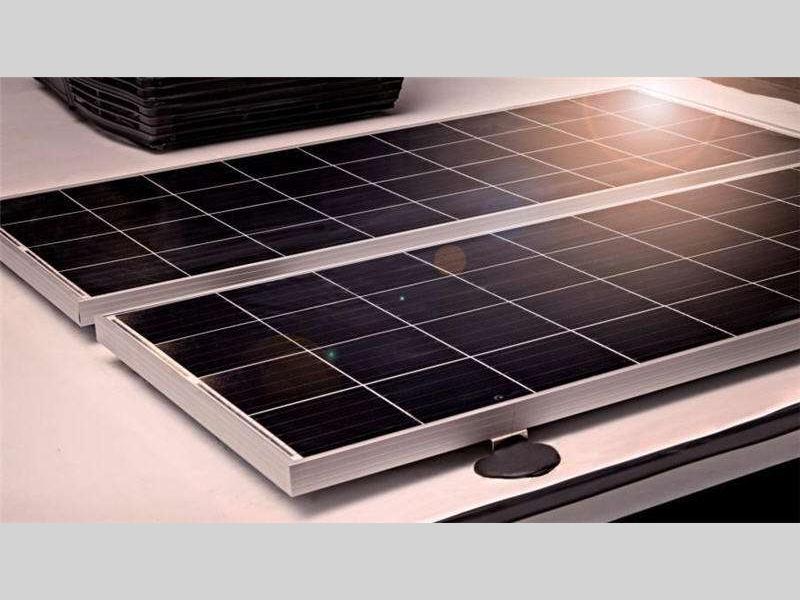

  • (2) 190W Go Power!® solar panels
  • (3) 15,000 BTU A/C units with heat pumps [(2) 15,000
  • BTU units with heat pumps on 37K]
  • 35,000 BTU furnace (37K) / (1) 20,000 and (1) 30,000
  • (39BH, 39T2)
  • Tankless gas water heater
  • 24.5 gal. propane tank
  • LED-lit fireplace with 5,000 BTU heating element (37K only)
  • Sani-Con® macerator holding tank dump system with manual gate
  • valves and manual backup
  • Black holding tank sprayer
  • City and tank water filtration system

Exterior

  • Carefree® power patio awning with LED lights
  • Carefree® power entrance door awning with LED lights
  • Carefree® slideout awnings
  • Carefree® window awnings
  • Frameless, dual-pane, tinted, safety-glass windows
  • Grab handle and keypad system for keyless entry
  • 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and
  • extend adjustment
  • JBL® radio and speakers with USB port and receptacle
  • Heated, remote-control, side-view mirrors with integrated cameras
  • Diamond Shield™ front protective film mask
  • Halogen high and low beam headlights and fog lights
  • Daytime running lights
  • LED marker lights, turn lights, license plate light, third brake light,
  • accent lights and docking lights
  • Porch light
  • Mudflap with chrome “Entegra” nameplate
  • Winegard® TRAV’LER satellite dish DIRECTV®
    • standard with USA option
  • Winegard® TRAV’LER satellite dish Shaw TV
    • standard with CSA option
  • Winegard Connect 2.0 Wi-Fi/4G antenna
  • Exterior utility center
  • Slideout basement storage tray
  • Sikkens custom full-body paint

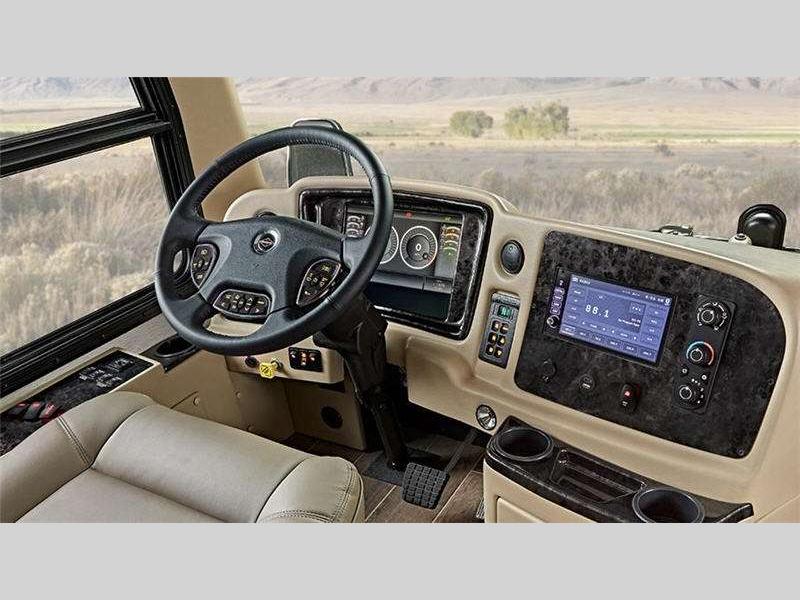

Cockpit

  • Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
  • Xite™ 360° HD digital camera system
  • Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
  • Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
  • Manual tilt and telescoping steering column
  • Ultra-Vision® one-piece wrap-around tinted windshield
  • 6-way power adjustable driver and passenger seats
  • Powered flush stepwell cover
  • Powered adjustable brake and accelerator pedals
  • Powered front sun visors and privacy shades

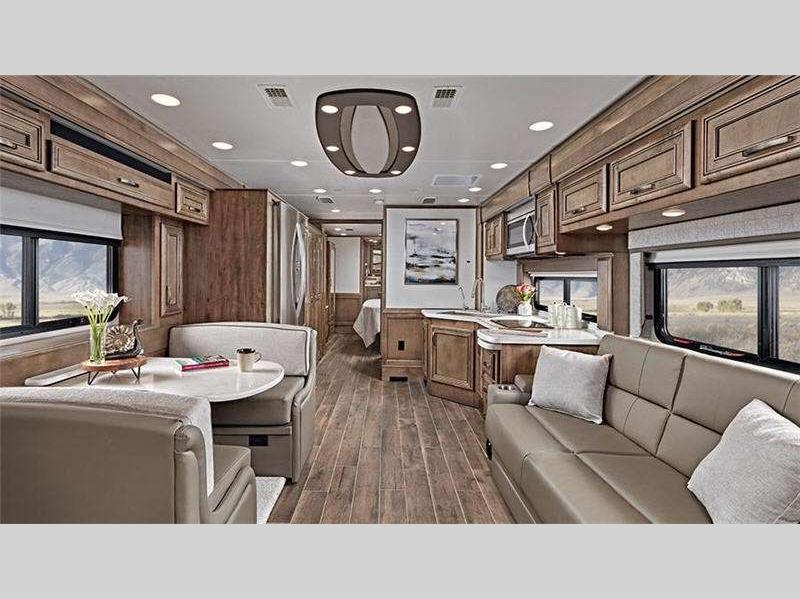

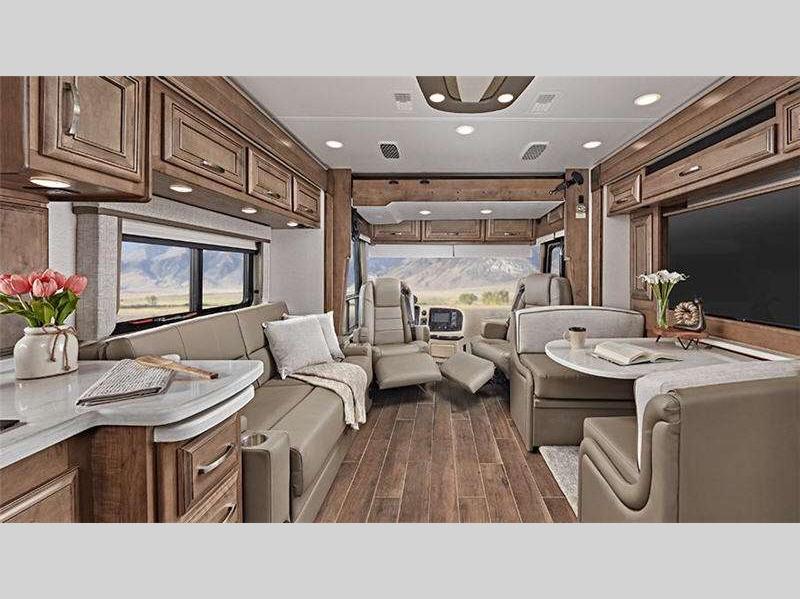

Interior

  • Firefly multiplex system with 10 in. VegaTouch
  • Firefly multiplex system with 7 in. VegaTouch touchscreen for complete
  • integration of coach controls (mobile app available)
  • 50 in. Samsung® 4K UHD Smart TV
  • Samsung® sound bar with subwoofer
  • Sony® Blu-ray™ player
  • Premium furniture
  • Hand-laid, woodgrain porcelain tiled floors
  • LED interior lighting
  • Decorative ceiling feature with integrated accent lighting
  • Manual solar day shades and blackout night shades
  • Central vacuum system
  • Removable screen on entry door

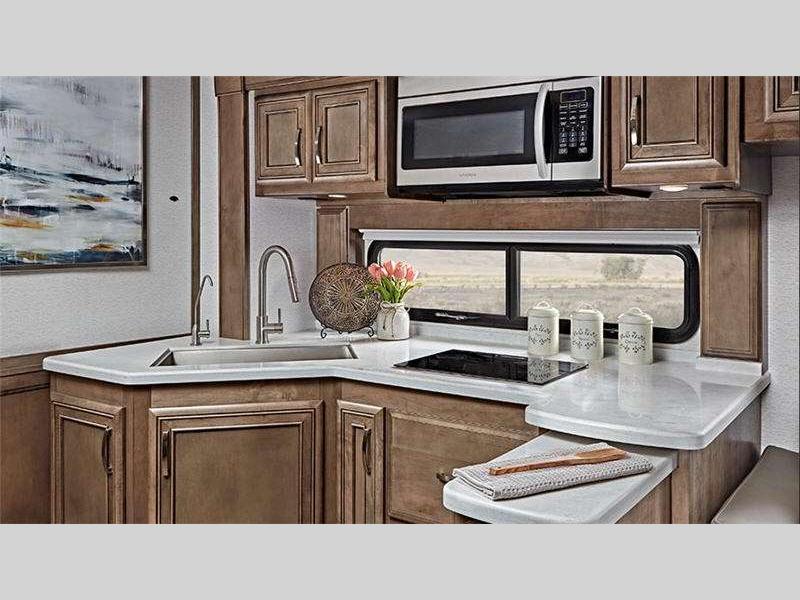

Kitchen

  • Window with push-out lever operation and screen
  • Stainless-steel residential refrigerator with ice maker and water dispenser
  • Induction cooktop
  • 1.5-cu. ft. convection microwave oven
  • Solid-surface countertops
  • Stainless steel sink
  • Fan-Tastic power exhaust fan with intake

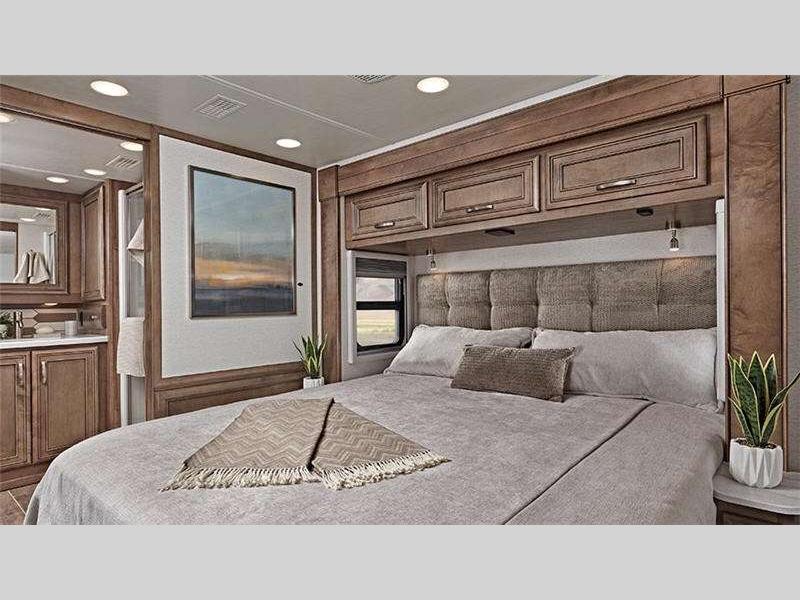

Bedroom

  • Select Comfort® Sleep Number® king-size mattress
  • 32 in. Samsung® LED 4K UHD Smart TV
  • Bose® sound bar with universal remote control
  • Sony® Blu-ray™ player
  • Ceiling fan
  • Nightstands with solid-surface tops
  • Large cedar-lined wardrobe
  • Automatic light in rear closet

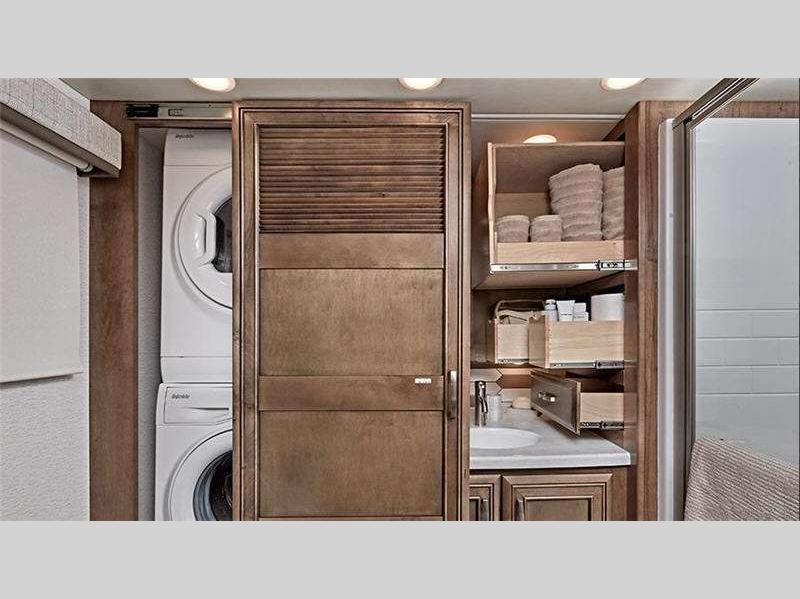

Bathroom

  • Solid-surface countertops with integrated sink
  • One-piece fiberglass shower with skylight
  • Aqua View SHOWERMI$ER™ water saving system
  • Thetford® Aqua Magic toilet with foot flush
  • Fan-Tastic power exhaust fan with intake
  • Separate washer and dryer

Safety

  • Combination carbon monoxide detector
  • LP gas alarm
  • Smoke alarm

Options

  • Canadian standards (CSA)
  • Theater seating with power recliners (39BH)
  • Winegard® in-motion satellite dome
  • Winegard® TRAV’LER satellite dish Dish Network®
  • Drop-down overhead bunk in cab area with
  • 750 lb. capacity

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
